Stacked month (top row) (Bug #887)
| Status: | Closed | Start date: | 2012-02-14 |
|---|---|---|---|
| Priority: | Normal | Due date: | |
| Assignee: |  Felix Schäfer |
% Done: | 0% |
| Category: | Gantt chart | ||
| Target version: | 3.1.0 | ||
| Remote issue URL: | Affected version: | 3.0.0 |
Description
The top row of the gantt chart which represents each month is somehow stacked when you have more than 1 month to be displayed instead of displaying properly like in the previous 2.X releases.

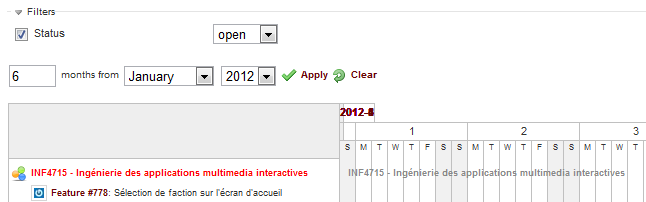

See the screenshot for a visual presentation of the problem.
This applies to both Google Chrome 17 as well as Firefox 10.
Associated revisions
Correct handling of Rational#to_s on ruby 1.9 #887
Contributed by Martin S
History
Updated by Martin S at 2012-04-01 06:26 pm
i just fixed that bug in my local copy.
There are some to_i missing in the gantt view calculation.
--- a/app/views/gantts/show.html.erb
+++ b/app/views/gantts/show.html.erb
@@ -98,13 +98,13 @@ month_f = @gantt.date_from
left = 0
height = (show_weeks ? header_heigth : header_heigth + g_height)
@gantt.months.times do
- width = ((month_f >> 1) - month_f) * zoom - 1
+ width = (((month_f >> 1) - month_f) * zoom - 1).to_i
%>
<div style="left:<%= left %>px;width:<%= width %>px;height:<%= height %>px;" class="gantt_hdr">
<%= link_to h("#{month_f.year}-#{month_f.month}"), @gantt.params.merge(:year => month_f.year, :month => month_f.month), :title => "#{month_name(month_f.month)} #{month_f.year}"%>
</div>
<%
- left = left + width + 1
+ left = (left + width + 1).to_i
month_f = month_f >> 1
Updated by Felix Schäfer at 2012-04-03 06:04 am
I can't reproduce this (on master). Could you have a look at the source and see what style values the month boxes have?
Updated by Tom Rochette at 2012-04-03 01:11 pm
Source looks like (for a single date item):
<div class="gantt_hdr" style="left:2448/1px;width:479/1px;height:18px;"> <a title="September 2012" href="/projects/p/issues/gantt?month=9&months=6&year=2012&zoom=4">2012-9</a> </div>
There's obviously something wrong with the inline div style...
Updated by Felix Schäfer at 2012-04-03 02:32 pm
Tom Rochette wrote:
There's obviously something wrong with the inline div style...
Indeed. Do you have more info about your setup? (Ruby? Server? …) I'd like to know the cause of this before fixing it :-)
- Status changed from Open to Needs more information
Updated by Tom Rochette at 2012-04-04 01:12 am
Felix Schäfer wrote:
Absolutely:Tom Rochette wrote:
There's obviously something wrong with the inline div style...
Indeed. Do you have more info about your setup? (Ruby? Server? …) I'd like to know the cause of this before fixing it :-)
- Ruby 1.9.3p30
- Rails 2.3.14
- ChiliProject 3.0.0.11e93ff36 (using mysql2 adapter)
- Thin 1.3.1
If you need anything else... Ask :)
Updated by Felix Schäfer at 2012-04-04 07:33 am
Tom Rochette wrote:
- Ruby 1.9.3p30
It seems that's the gist of the problem, ruby 1.8 and 1.9 print Rational s out differently. On 1.8:
>> Rational(29,1).to_s => "29"
On 1.9:
>> Rational(29,1).to_s => "29/1"
- Status changed from Needs more information to Open
Updated by Felix Schäfer at 2012-04-04 07:40 am
Fixed in 0a7c6e6, thanks!
- Status changed from Open to Closed
Updated by Holger Just at 2012-04-04 08:01 am
- Target version set to 3.1.0
- Assignee set to Felix Schäfer
Updated by Tom Rochette at 2012-04-04 01:15 pm
Confirmed fixed @ 3.1.0 in Firefox 11.
Updated by Felix Schäfer at 2012-04-04 01:50 pm
Tom Rochette wrote:
Confirmed fixed @ 3.1.0 in Firefox 11.
You're fast ;-) Thanks for the feedback!
